- Socket Polarity Tester with RCD Test Function FAIDETSOCRCD

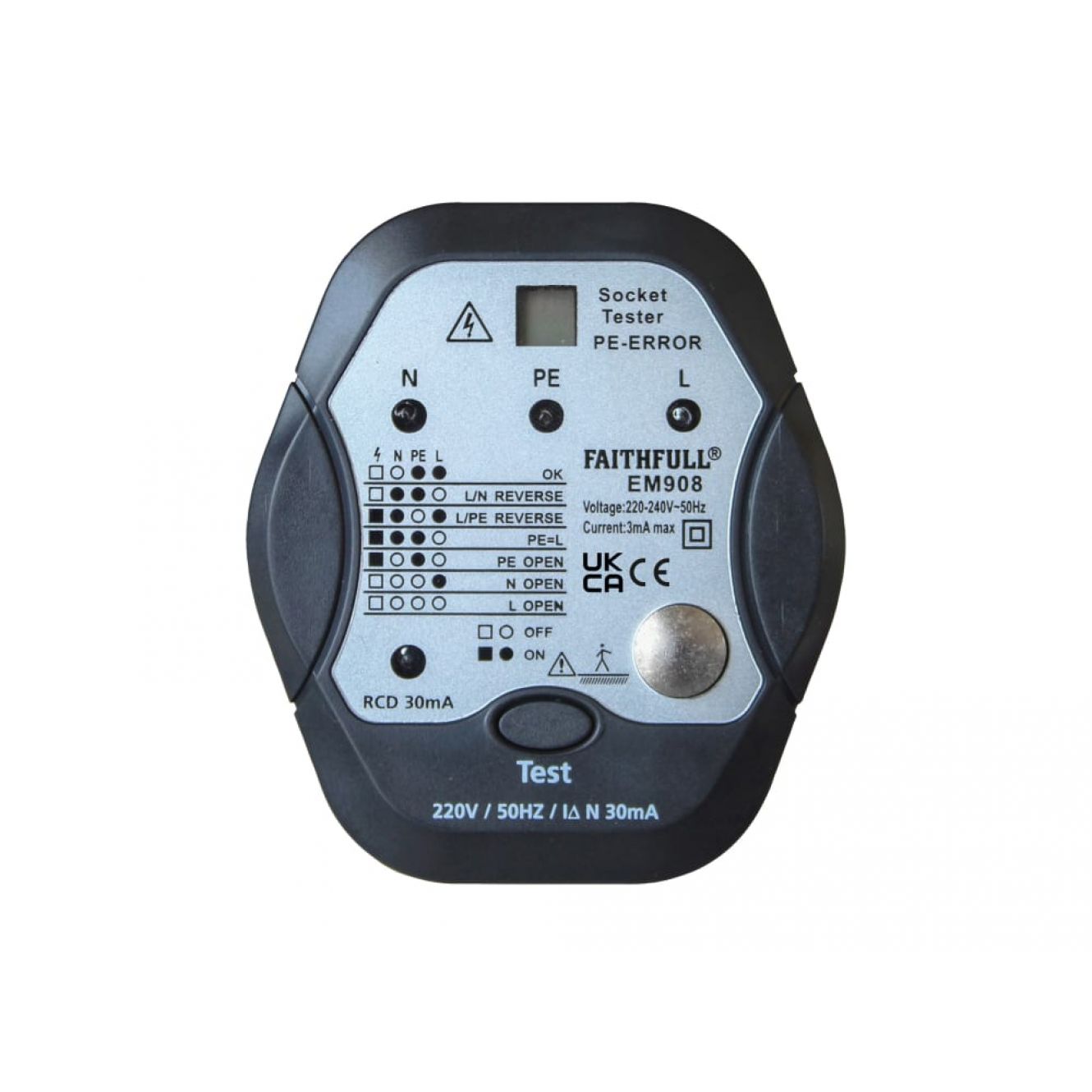

FaithfullSocket Polarity Tester with RCD Test Function FAIDETSOCRCD
The Faithfull Socket Tester is an essential mains safety tester designed for testing socket wiring and RCDs. It will determine whether a socket is wired correctly or incorrectly. Used in conjunction with the coding table provided, the 5 combined indicators show the true status of the sockets wiring condition. It provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE). The use of 3 neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring. It is equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA.
Specification:
Socket Type: UK 240V 3-Pin
Nominal Voltage: 220V ±10%
Frequency Range: 50~60Hz
Measurement Category: CATIII, 300V
RCD Test Time: 60~300ms
Contact Voltage Threshold: <35 AC against ground depending on coupling to earth
RCD Test Current: 30mA ±15%
Dimensions: 77 x 67 x 66mm
Weight: approx. 70g
The Faithfull Socket Tester is an essential mains safety tester designed for testing socket wiring and RCDs. It will determine whether a socket is wired correctly or incorrectly. Used in conjunction with the coding table provided, the 5 combined indicators show the true status of the sockets wiring condition. It provides a true ground error indication through the LCD if dangerous contact voltage is present at the protective earth (PE). The use of 3 neon indicators for L-N-PE provides rapid detection of correct/incorrect socket wiring. It is equipped with an additional RCD tester for testing the operation of RCDs with a rating of not more than 30mA.
Specification:
Socket Type: UK 240V 3-Pin
Nominal Voltage: 220V ±10%
Frequency Range: 50~60Hz
Measurement Category: CATIII, 300V
RCD Test Time: 60~300ms
Contact Voltage Threshold: <35 AC against ground depending on coupling to earth
RCD Test Current: 30mA ±15%
Dimensions: 77 x 67 x 66mm
Weight: approx. 70g
