- Air Compressor 200L Belt Drive 3hp with Cast Cylinders SAC2203B

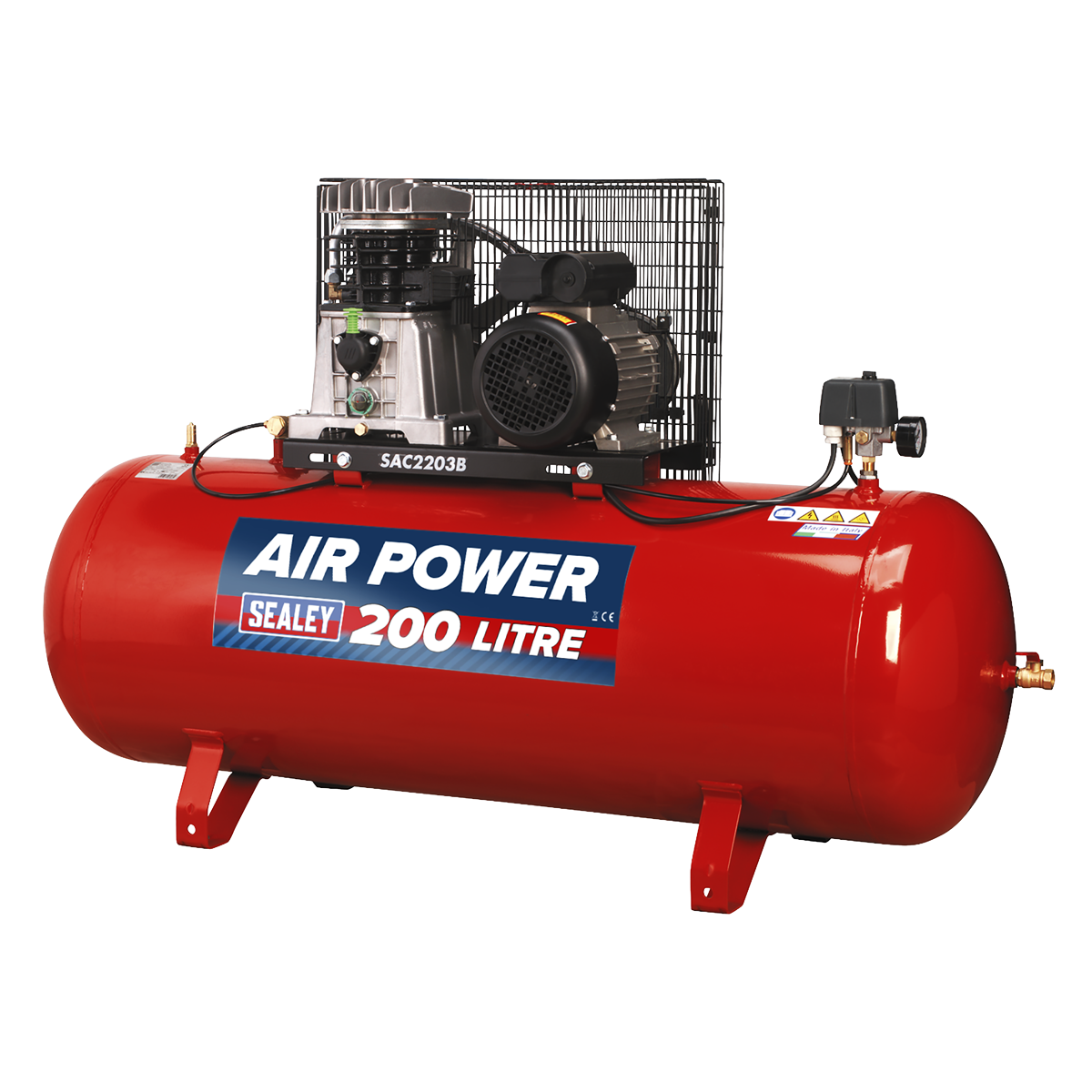

Sealey ToolsAir Compressor 200L Belt Drive 3hp with Cast Cylinders SAC2203B
RRP £1,535.94£1,404.82(£1,170.68 ex. VAT)Save: £131.12
In Stock
Product Description
Product Reviews
Our top-of-the-range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble-free start up-on a good 13A supply. However on this model we recommend fitting a 16A plug and connecting to a 20A supply protected by a type-C circuit breaker for easier start-up. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
Specifications
- Model No SAC2203B
- Air Displacement cfm(L/min): 15(425)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 10.9(309)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 16A
- Motor Output: 3hp
- Nett Weight: 97kg
- Outlet: 1/2"BSP Female Tap
- Phase: 1ph
- Receiver Capacity: 200L
- Size (W x D x H): 1440 x 440 x 900mm
- Speed: 1280rpm
- Supply: 230V
Our top-of-the-range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble-free start up-on a good 13A supply. However on this model we recommend fitting a 16A plug and connecting to a 20A supply protected by a type-C circuit breaker for easier start-up. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
Specifications
- Model No SAC2203B
- Air Displacement cfm(L/min): 15(425)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 10.9(309)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 16A
- Motor Output: 3hp
- Nett Weight: 97kg
- Outlet: 1/2"BSP Female Tap
- Phase: 1ph
- Receiver Capacity: 200L
- Size (W x D x H): 1440 x 440 x 900mm
- Speed: 1280rpm
- Supply: 230V
