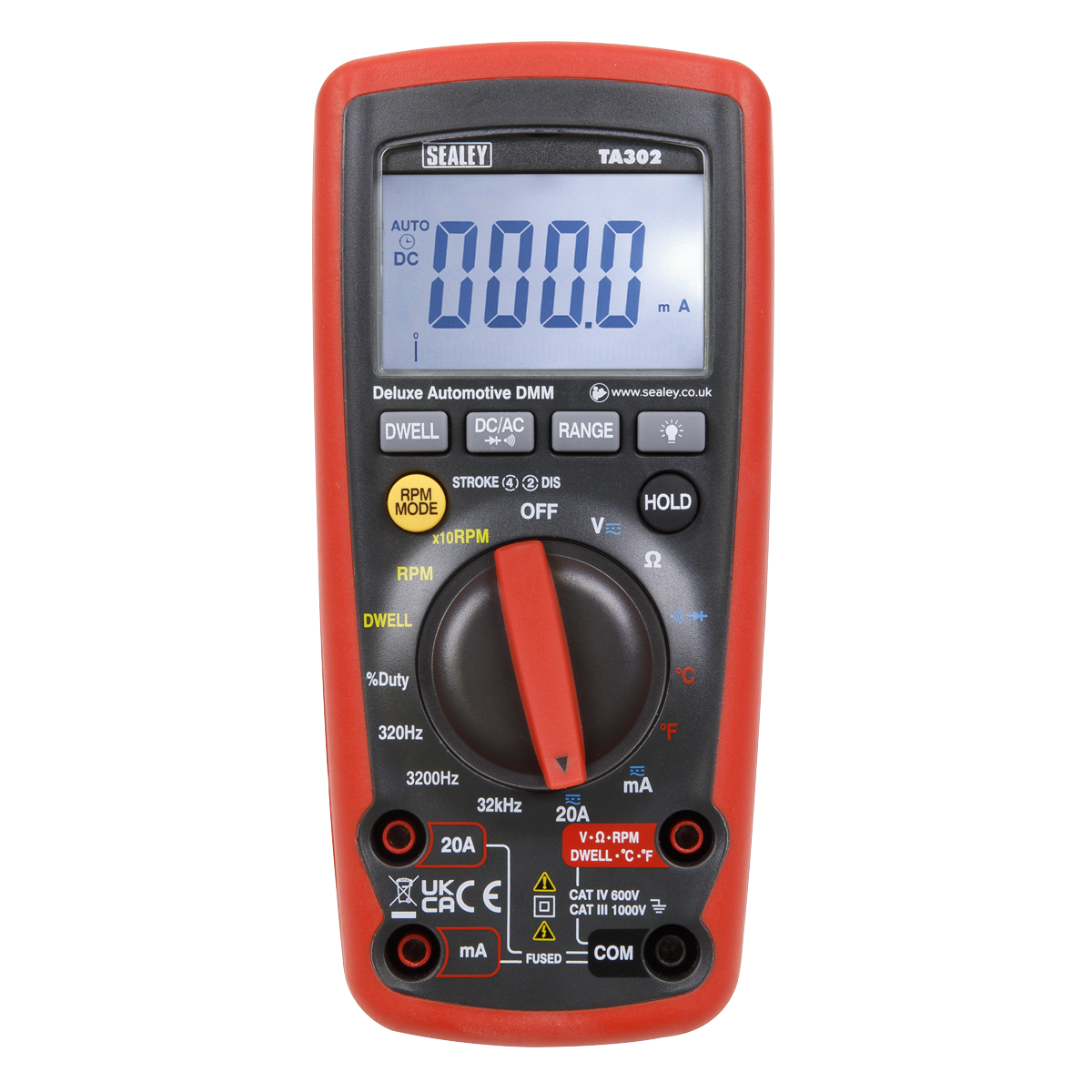

- Digital Automotive Analyser 12-Function with Inductive Coupler TA302
Sealey ToolsDigital Automotive Analyser 12-Function with Inductive Coupler TA302
RRP £119.94£95.95(£79.96 ex. VAT)Save: £23.99
In Stock
Product Description
Product Reviews
12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple.
Specifications
- Model No TA302
- Brand: Sealey
- Nett Weight: 366g
- Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
- Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
- AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging)
- DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
- AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
- DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
- Capacitance: No
- Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging)
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
- Continuity: <35Ω Continuity Buzzer 2kHz
- Temperature: -20 to +760°C, -4 to +1400°F
- IR Temperature: No
- Diode Check: Yes
- Transistor Test: No
- Back Light: Yes
- Bar Graph Display: Yes
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: Yes
- PC Interface: No
- Digits Height: 18mm
- Auto Power Off: n/a
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 167 x 79 x 50mm
- Weight: 366g
12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple.
Specifications
- Model No TA302
- Brand: Sealey
- Nett Weight: 366g
- Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
- Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
- AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging)
- DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
- AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
- DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
- Capacitance: No
- Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging)
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
- Continuity: <35Ω Continuity Buzzer 2kHz
- Temperature: -20 to +760°C, -4 to +1400°F
- IR Temperature: No
- Diode Check: Yes
- Transistor Test: No
- Back Light: Yes
- Bar Graph Display: Yes
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: Yes
- PC Interface: No
- Digits Height: 18mm
- Auto Power Off: n/a
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 167 x 79 x 50mm
- Weight: 366g
