- Digital Automotive Analyser 13-Function with Inductive Coupler TA201
Sealey ToolsDigital Automotive Analyser 13-Function with Inductive Coupler TA201
RRP £107.94£89.01(£74.17 ex. VAT)Save: £18.93
In Stock
Product Description
Product Reviews

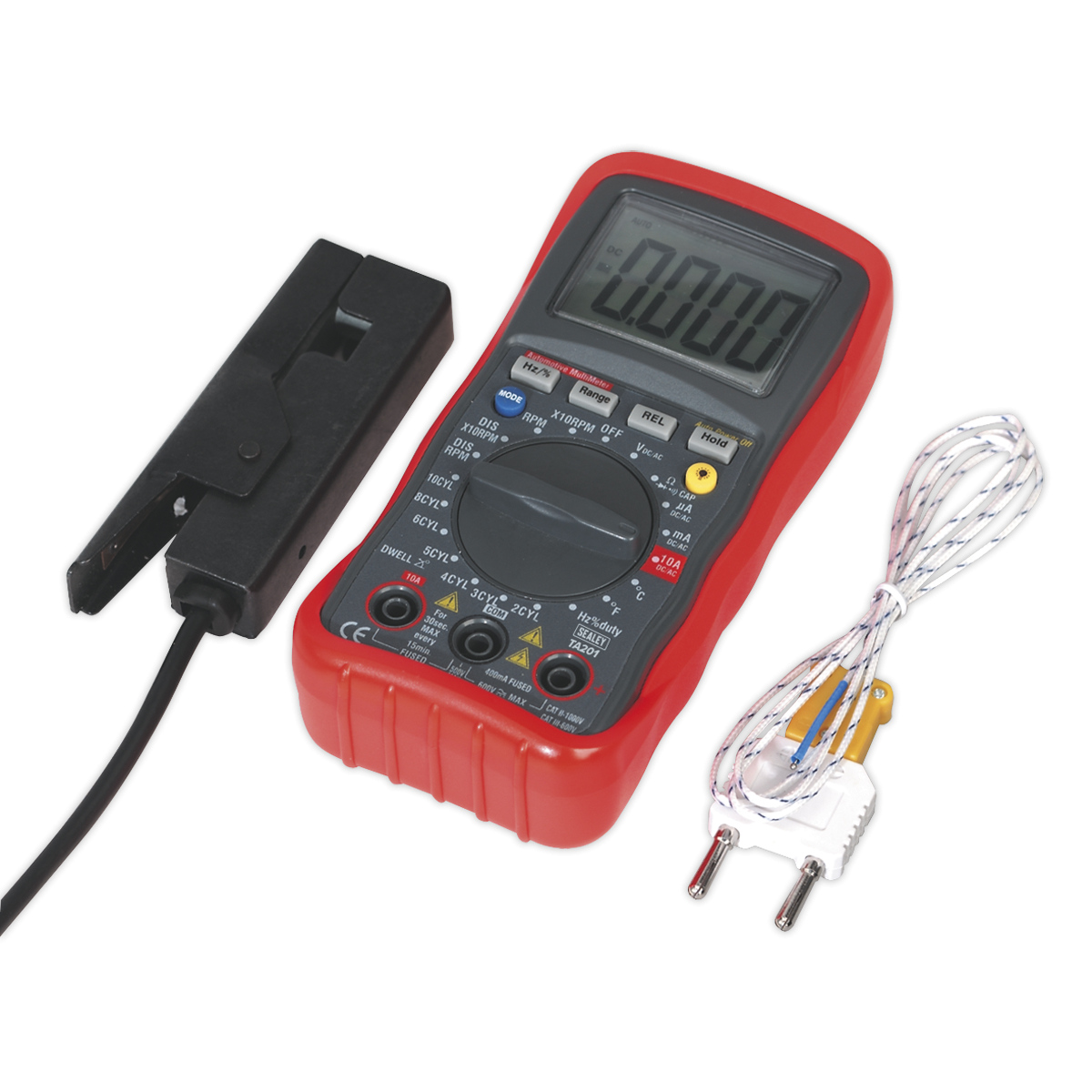

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler (IC) for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
Specifications
- Model No TA201
- Brand: Sealey
- Nett Weight: 330g
- Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
- Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
- AC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
- DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
- AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
- DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
- Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
- Frequency: 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
- Continuity: <150Ω
- Temperature: -20 to +760°C/-4 to +1400°F
- IR Temperature: No
- Diode Check: Yes (Typical Test Current 0.3mA)
- Transistor Test: No
- Back Light: Yes
- Bar Graph Display: No
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: Yes
- PC Interface: No
- Digits Height: 22mm
- Auto Power Off: Yes
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 146 x 66.2 x 41.5mm
- Weight: 330g
Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler (IC) for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
Specifications
- Model No TA201
- Brand: Sealey
- Nett Weight: 330g
- Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
- Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
- AC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
- DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
- AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
- DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
- Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
- Frequency: 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
- Continuity: <150Ω
- Temperature: -20 to +760°C/-4 to +1400°F
- IR Temperature: No
- Diode Check: Yes (Typical Test Current 0.3mA)
- Transistor Test: No
- Back Light: Yes
- Bar Graph Display: No
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: Yes
- PC Interface: No
- Digits Height: 22mm
- Auto Power Off: Yes
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 146 x 66.2 x 41.5mm
- Weight: 330g
