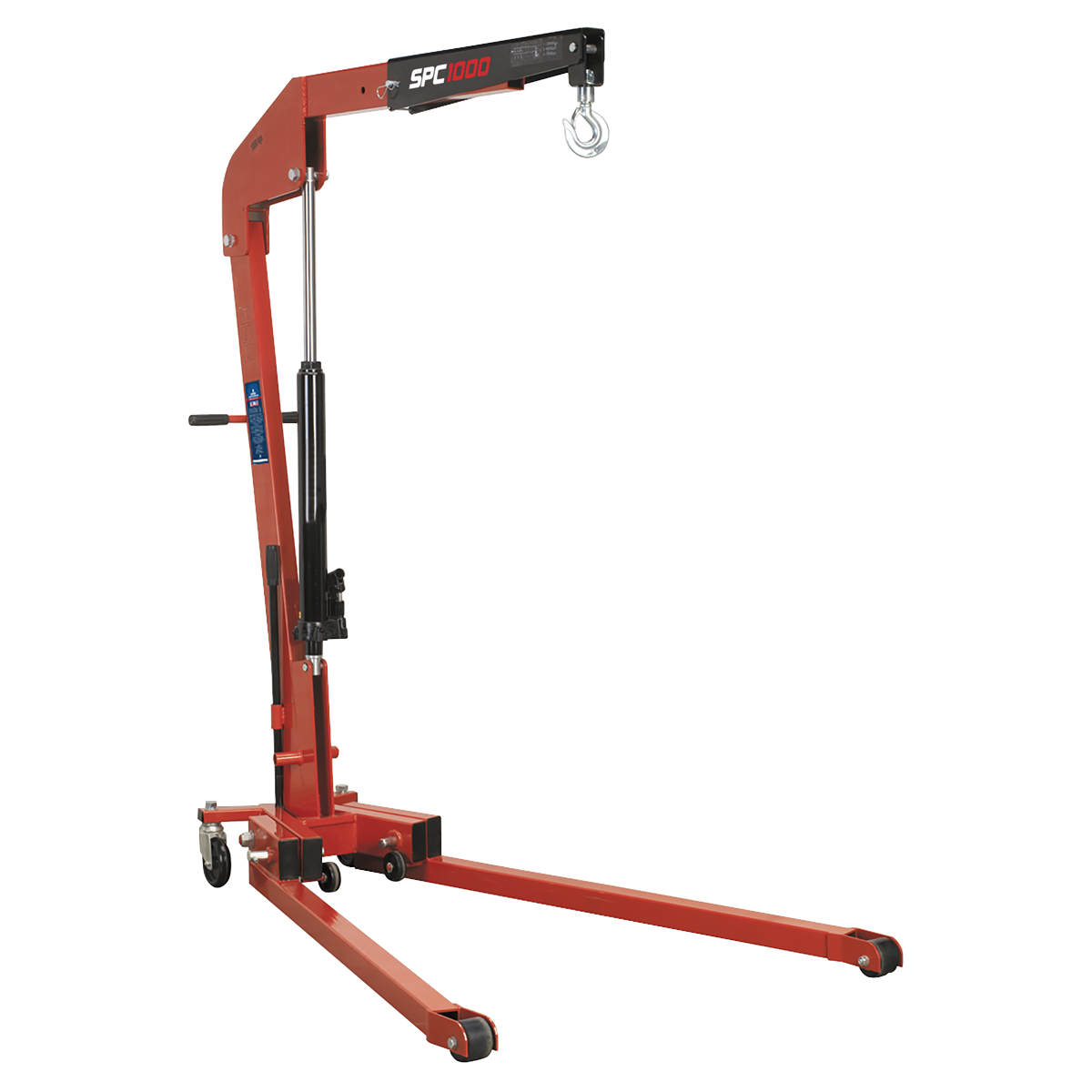

Sealey ToolsFolding Engine Crane 1 Tonne SPC1000

Premier 1tonne folding crane with heavy-duty forged hook. Low profile with a height of only 80mm at the wheels. Fast folding for easy storage and transportation. Weighs 124kg and is perfect for professional workshop use. Beam can be set in three positions, allowing a lifting capacity from 700kg to 1000kg. Features 300° rotating pump handle to aid use where space is limited.

Specifications

• Model No SPC1000
• Brand: Premier
• Height Jib Down: 1665mm
• Height Legs Folded: 1680mm
• Height of Frame: 80mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 1280mm
• Length of Jib Position 2: 1430mm
• Length of Jib Position 3: 1576mm
• Length of Jib Position 4: n/a
• Length of Jib Position 5: n/a
• Length: 1750mm
• Lifting Capacity in Position 1: 1000kg
• Lifting Capacity in Position 2: 800kg
• Lifting Capacity in Position 3: 700kg
• Lifting Capacity in Position 4: n/a
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 2380mm
• Max. Lift Ht at Jib Position 2: 2465mm
• Max. Lift Ht at Jib Position 3: 2550mm
• Max. Lift Ht at Jib Position 4: n/a
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 124kg
• Rear Width: 435mm
• Width Front Frame: 1065mm
• Width Inside Front Frame: 930mm
