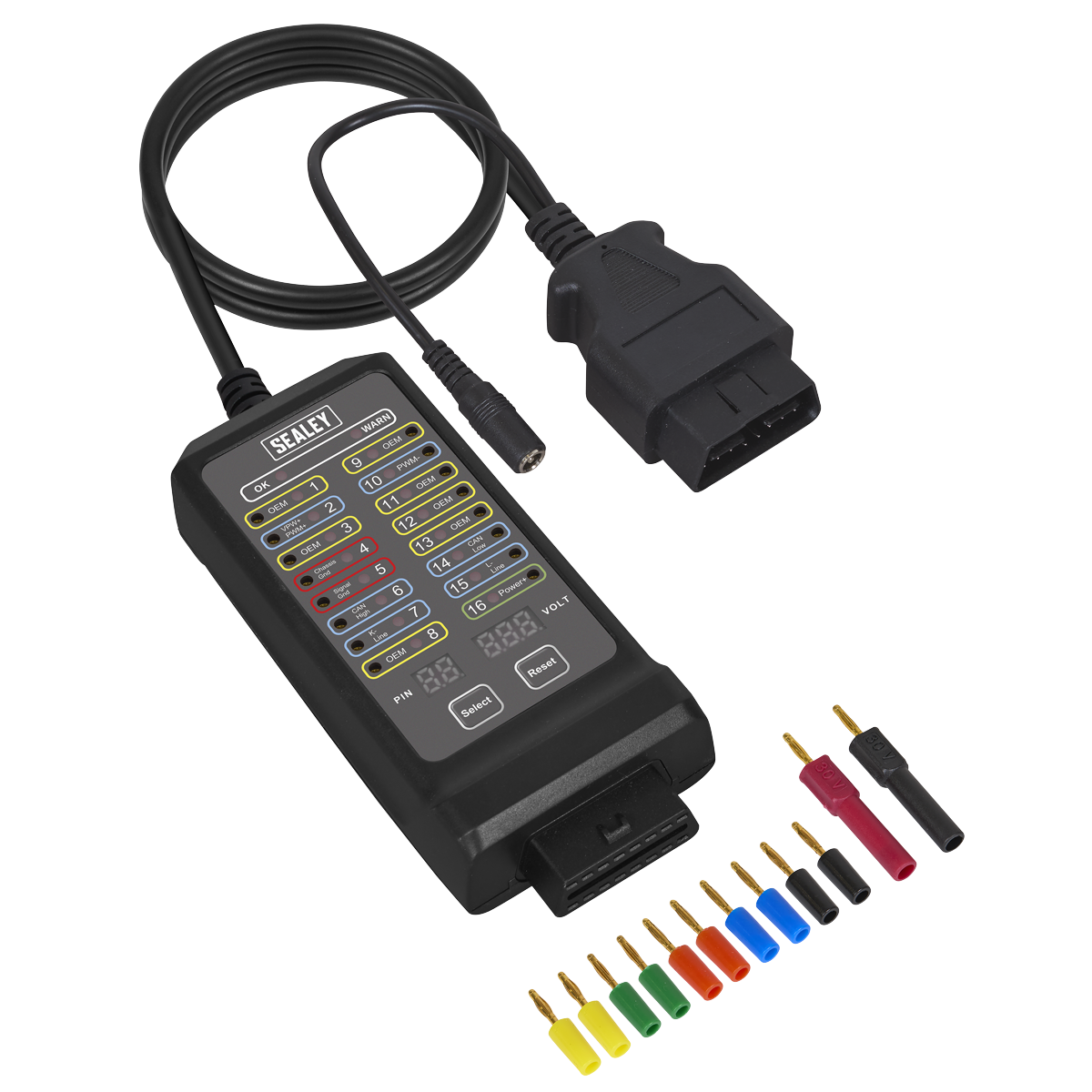

Sealey ToolsOBD Breakout Box 16-Pin 12V/24V VS8813

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.

Specifications

• Model No VS8813
• Brand: Sealey
• Nett Weight: 0.24kg
• Input Voltage DC: 9-32V
• Maximum Load: 2.0A
• Resolution: : 0.1V
• Overload Protection: Yes
• Reverse Polarity Protection: Yes
• Operating Temperature: 0℃-50℃
• Cable Length 700mm
