- Pillar Drill Bench 12-Speed 840mm Height 370W/230V GDM92B

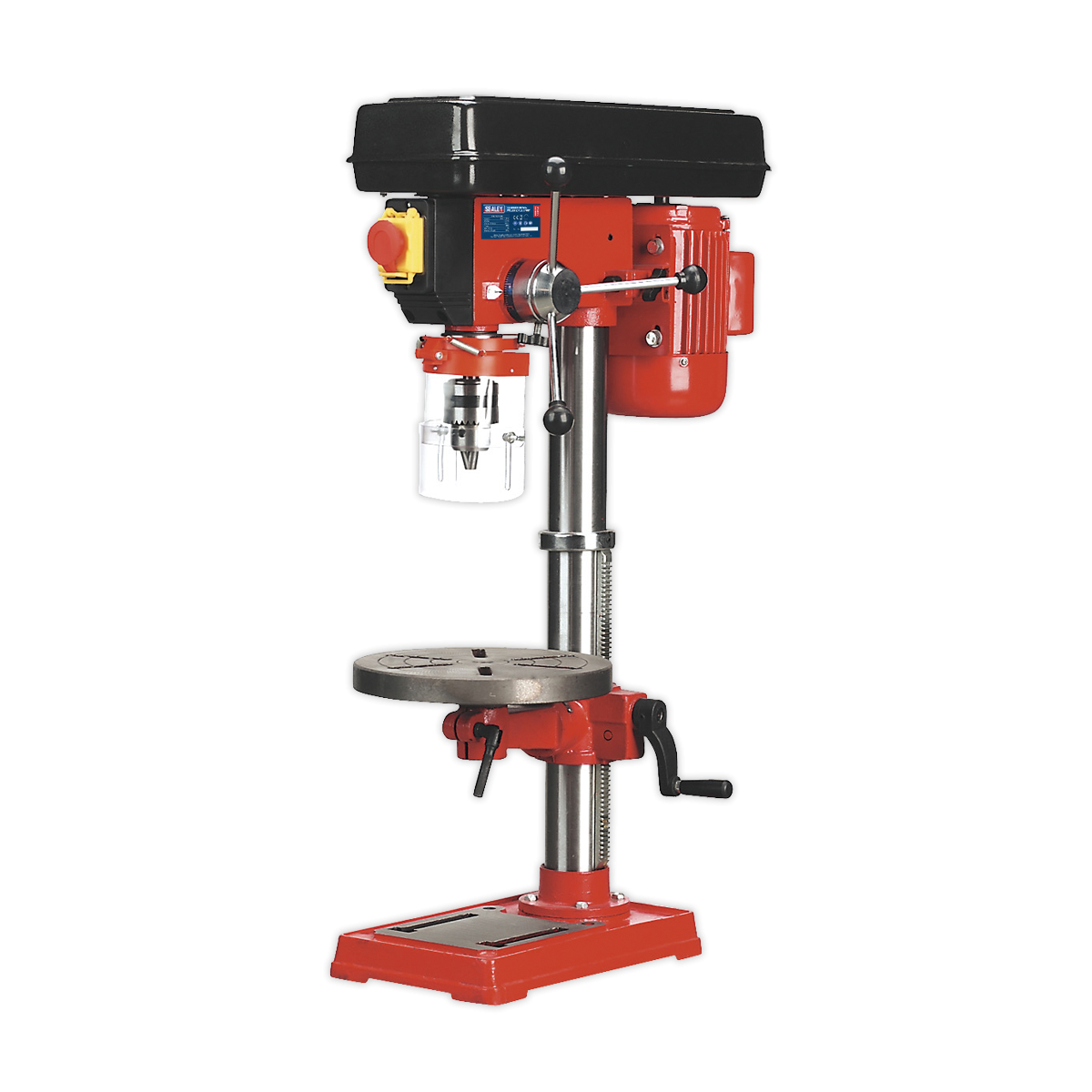

Sealey ToolsPillar Drill Bench 12-Speed 840mm Height 370W/230V GDM92B
RRP £503.94£331.74(£276.45 ex. VAT)Save: £172.20
In Stock
Product Description
Product Reviews
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
Specifications
- Model No GDM92B
- Base Size: 345 x 215mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): 16mm
- Maximum Distance Spindle to Base: 540mm
- Maximum Distance Spindle to Table: 390mm
- Motor Power (Start): 220W(370W)
- Nett Weight: 32kg
- Number of Speeds: 12
- Optional Accessories: GDMX/KC - Keyless Chuck 16mm:
- Overall Height: 840mm
- Speed Range: 210-2580rpm
- Spindle Centre to Column: 127mm
- Spindle Nose Taper: MT2
- Spindle Travel: 60mm
- Supply: 230V
- Swing: 254mm
- Working Base Surface Size: 160 x 180mm
- Working Table Surface Size: Ø248mm
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
Specifications
- Model No GDM92B
- Base Size: 345 x 215mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): 16mm
- Maximum Distance Spindle to Base: 540mm
- Maximum Distance Spindle to Table: 390mm
- Motor Power (Start): 220W(370W)
- Nett Weight: 32kg
- Number of Speeds: 12
- Optional Accessories: GDMX/KC - Keyless Chuck 16mm:
- Overall Height: 840mm
- Speed Range: 210-2580rpm
- Spindle Centre to Column: 127mm
- Spindle Nose Taper: MT2
- Spindle Travel: 60mm
- Supply: 230V
- Swing: 254mm
- Working Base Surface Size: 160 x 180mm
- Working Table Surface Size: Ø248mm
