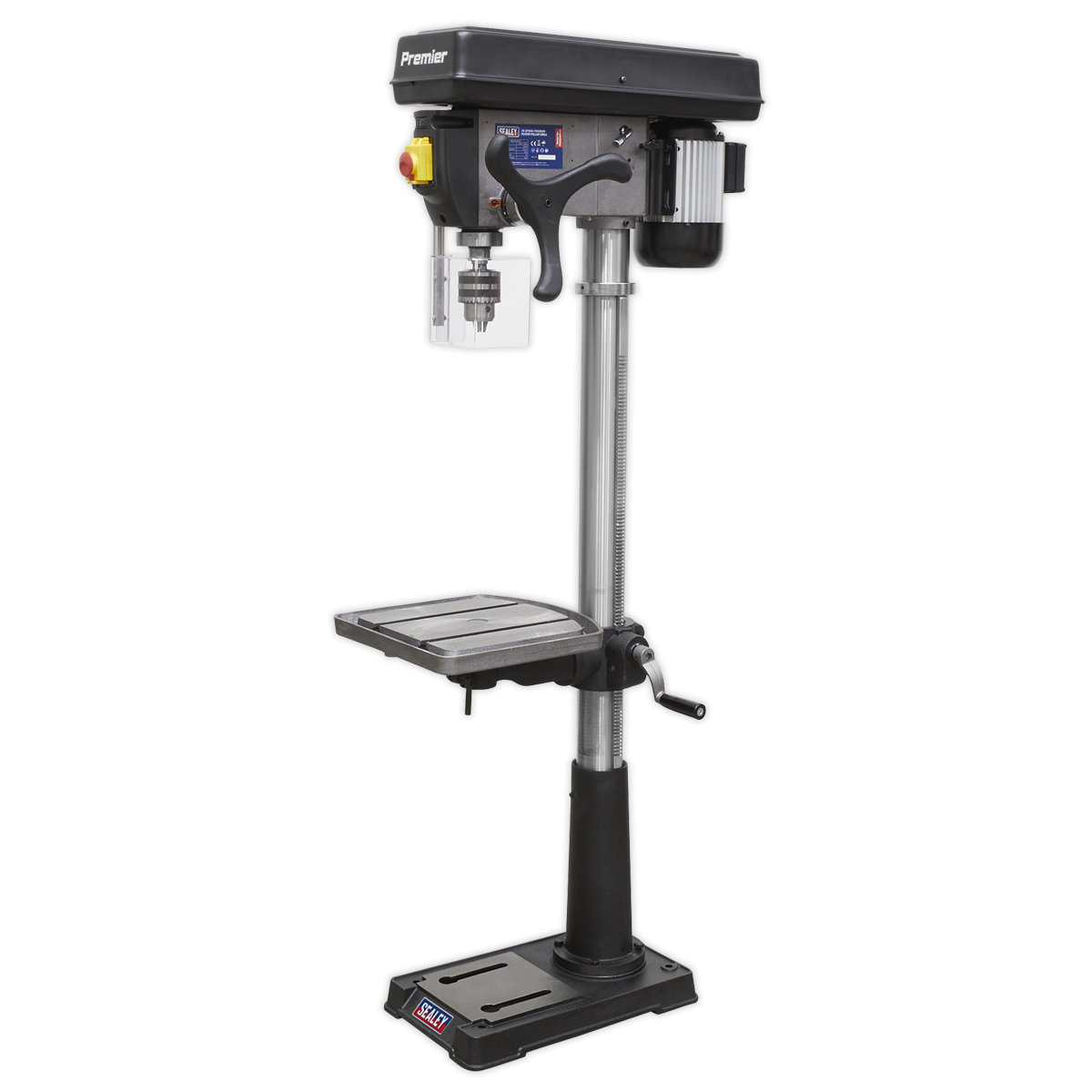

- Pillar Drill Floor 16-Speed 1635mm Height 230V PDM240F
Sealey ToolsPillar Drill Floor 16-Speed 1635mm Height 230V PDM240F
RRP £1,115.94£719.97(£599.98 ex. VAT)Save: £395.97
In Stock
Product Description
Product Reviews
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Specifications
- Model No PDM240F
- Base Size: 495 x 290mm
- Brand: Premier
- Collar Diameter: Ø75mm
- Column Diameter: Ø80mm
- Drilling Capacity (Chuck Size): 20mm
- Integral Work Light: Yes
- Maximum Distance Spindle to Base: 1230mm
- Maximum Distance Spindle to Table: 720mm
- Motor Power (Start): 750W(1000W)
- Nett Weight: 76kg
- Number of Speeds: 16
- Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1635mm
- Speed Range: 160-3000rpm
- Spindle Centre to Column: 216mm
- Spindle Nose Taper: MT3
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 512mm
- Working Base Surface Size: 205 x 200mm
- Working Table Surface Size: 356 x 356mm
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Specifications
- Model No PDM240F
- Base Size: 495 x 290mm
- Brand: Premier
- Collar Diameter: Ø75mm
- Column Diameter: Ø80mm
- Drilling Capacity (Chuck Size): 20mm
- Integral Work Light: Yes
- Maximum Distance Spindle to Base: 1230mm
- Maximum Distance Spindle to Table: 720mm
- Motor Power (Start): 750W(1000W)
- Nett Weight: 76kg
- Number of Speeds: 16
- Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1635mm
- Speed Range: 160-3000rpm
- Spindle Centre to Column: 216mm
- Spindle Nose Taper: MT3
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 512mm
- Working Base Surface Size: 205 x 200mm
- Working Table Surface Size: 356 x 356mm
