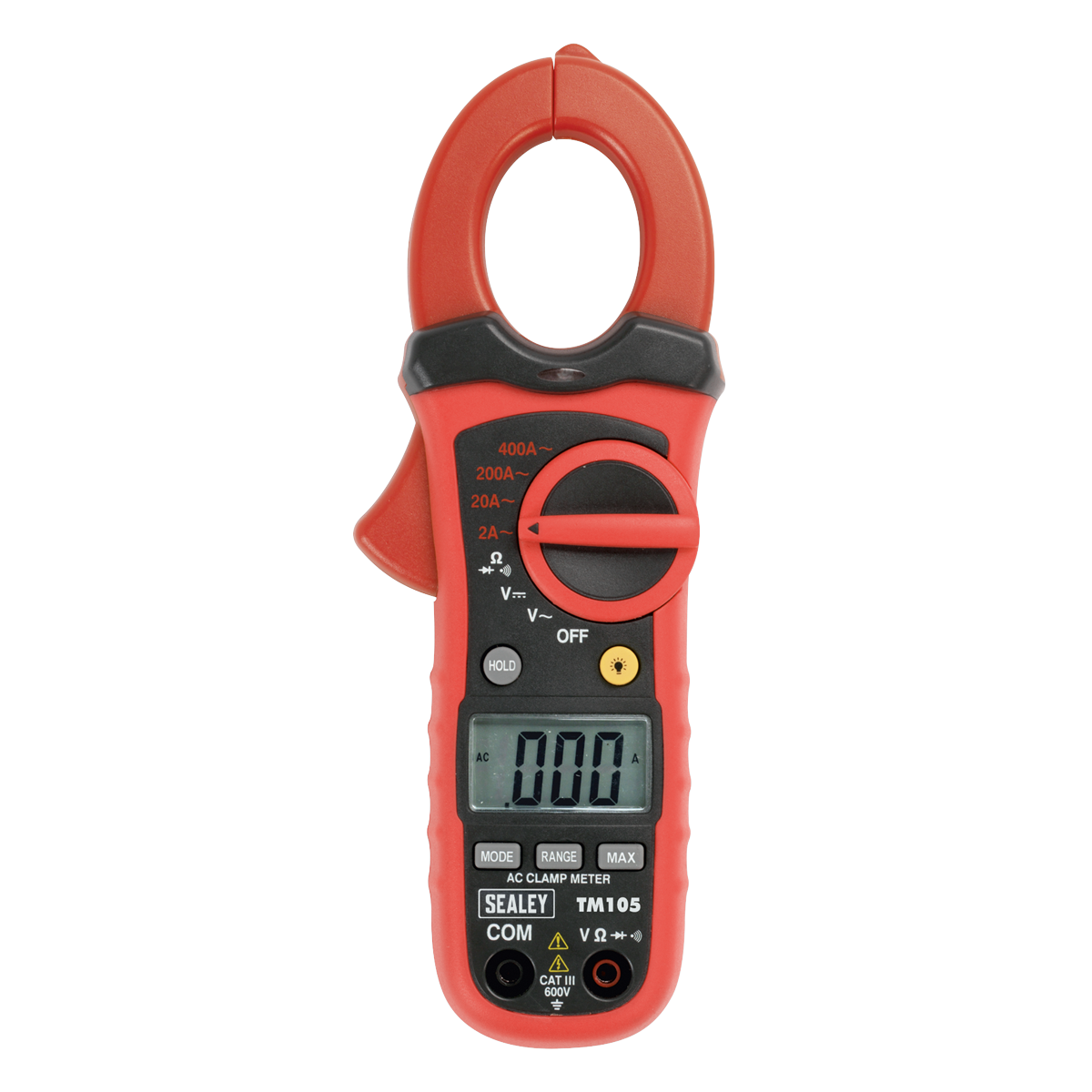

Sealey ToolsProfessional Auto-Ranging Digital Clamp Meter NCVD - 6-Function TM105

High precision clamp meter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand. Includes data and maximum hold functions. Double moulded housing with soft grip case, large display for ease of use and 30mm clamp. Supplied in zipped pouch with carry strap. Measures: • AC and DC Voltage • AC Current • Resistance • Diode Test • Audible Continuity • Non-Contact Voltage Detection (NCVD)

Specifications

• Model No TM105
• Brand: Sealey
• Nett Weight: 345g
• AC Voltage (Accuracy): 200mV (±1.5%), 2V, 20V, 200V (±1.8%), 600V (±2.5%)
• DC Voltage (Accuracy): 0-200mV (±0.8%), 2V, 20V, 200V (±1.5%), 600V (±2%)
• AC Current (Accuracy): 2A, 20A, 200A (±2.5%), 400A (±3%)
• DC Current (Accuracy): No
• Resistance (Accuracy): 0-200Ω (±1%), 2kΩ, 20kΩ, 200kΩ (±1.5%), 2MΩ (±2.5%), 20MΩ (±3.5%)
• Capacitance (Accuracy): No
• Temperature (Accuracy): No
• Frequency (Accuracy): No
• Duty Cycle: No
• Continuity Audible: Yes
• Diode Test: Yes
• Transistor Test: No
• Hi-Impact Rubber Case: No
• Digits x Height: 3.5 x 14mm
• Low Battery Indicator: Yes
• Battery (Supplied): 1 x 9V
• Jaw Opening: 32mm
• Information: Data-Hold, Auto-Power-Off, Non-Contact Voltage Detection
• Size (L x W x D): 197 x 70 x 40mm
• Weight: 345g
• Conformity: EN 61010-1
