- Pillar Drill Bench 16-Speed 1085mm Height 750W/230V GDM180B

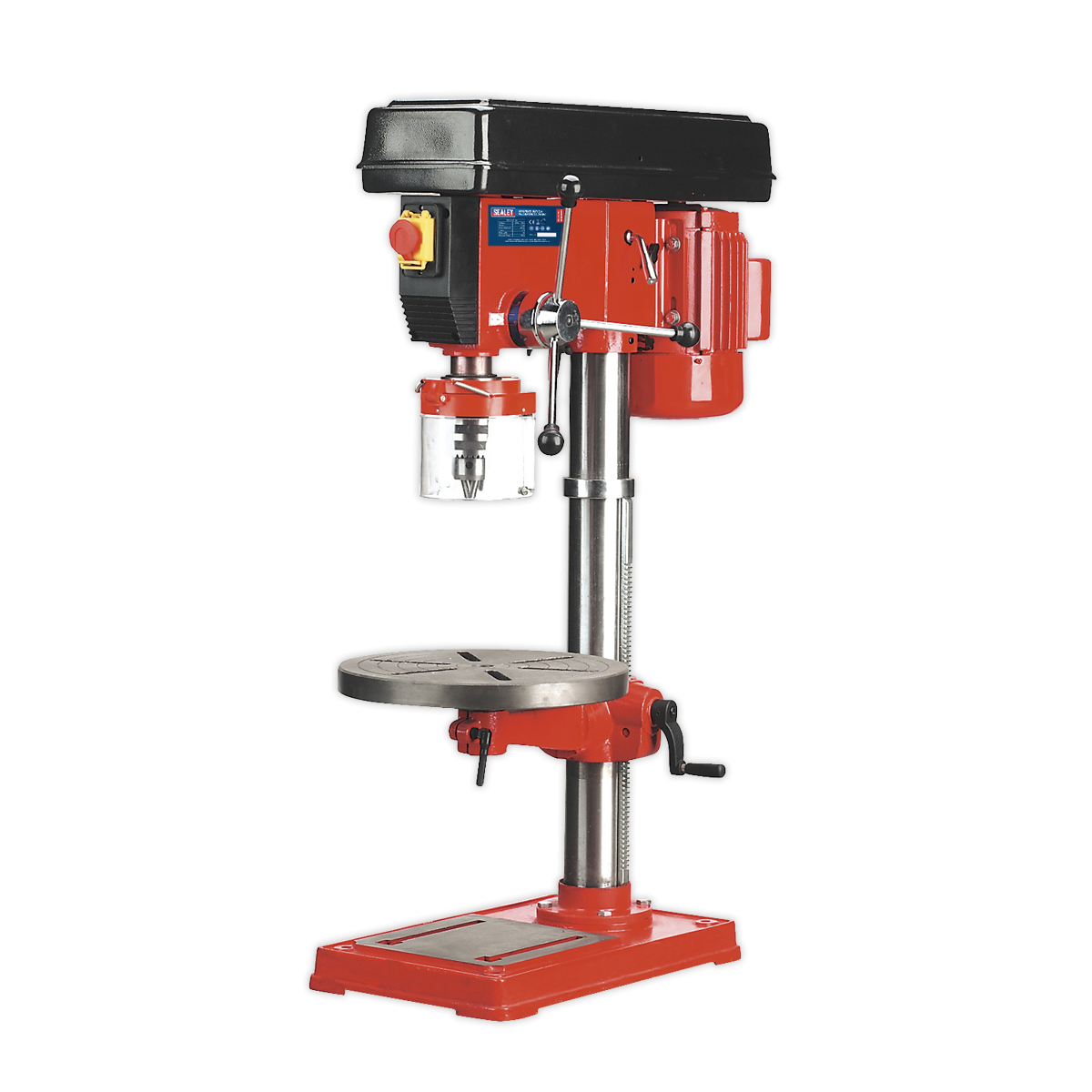

Sealey ToolsPillar Drill Bench 16-Speed 1085mm Height 750W/230V GDM180B
RRP £947.94£563.83(£469.86 ex. VAT)Save: £384.11
In Stock
Product Description
Product Reviews
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-voltage switch and locking cover to prevent accidental starting. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.
Specifications
- Model No GDM180B
- Base Size: 520 x 320mm
- Brand: Sealey
- Collar Diameter: 75mm
- Column Diameter: 80mm
- Drilling Capacity (Chuck Size): 20mm
- Maximum Distance Spindle to Base: 685mm
- Maximum Distance Spindle to Table: 495mm
- Motor Power (Start): 550W(750W)
- Nett Weight: 70kg
- Number of Speeds: 16
- Overall Height: 1085mm
- Speed Range: 120-3000rpm
- Spindle Centre to Column: 216mm
- Spindle Nose Taper: MT3
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 432mm
- Working Base Surface Size: 240 x 280mm
- Working Table Surface Size: Ø355mm
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Fully guarded and suitable for educational use. Fitted with no-voltage switch and locking cover to prevent accidental starting. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.
Specifications
- Model No GDM180B
- Base Size: 520 x 320mm
- Brand: Sealey
- Collar Diameter: 75mm
- Column Diameter: 80mm
- Drilling Capacity (Chuck Size): 20mm
- Maximum Distance Spindle to Base: 685mm
- Maximum Distance Spindle to Table: 495mm
- Motor Power (Start): 550W(750W)
- Nett Weight: 70kg
- Number of Speeds: 16
- Overall Height: 1085mm
- Speed Range: 120-3000rpm
- Spindle Centre to Column: 216mm
- Spindle Nose Taper: MT3
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 432mm
- Working Base Surface Size: 240 x 280mm
- Working Table Surface Size: Ø355mm
