- Portable Lifting Gantry Crane Adjustable 0.5 Tonne & Hoist Combo SG500KIT
Sealey ToolsPortable Lifting Gantry Crane Adjustable 0.5 Tonne & Hoist Combo SG500KIT
RRP £911.94£804.65(£670.54 ex. VAT)Save: £107.29
In Stock
Product Description
Product Reviews

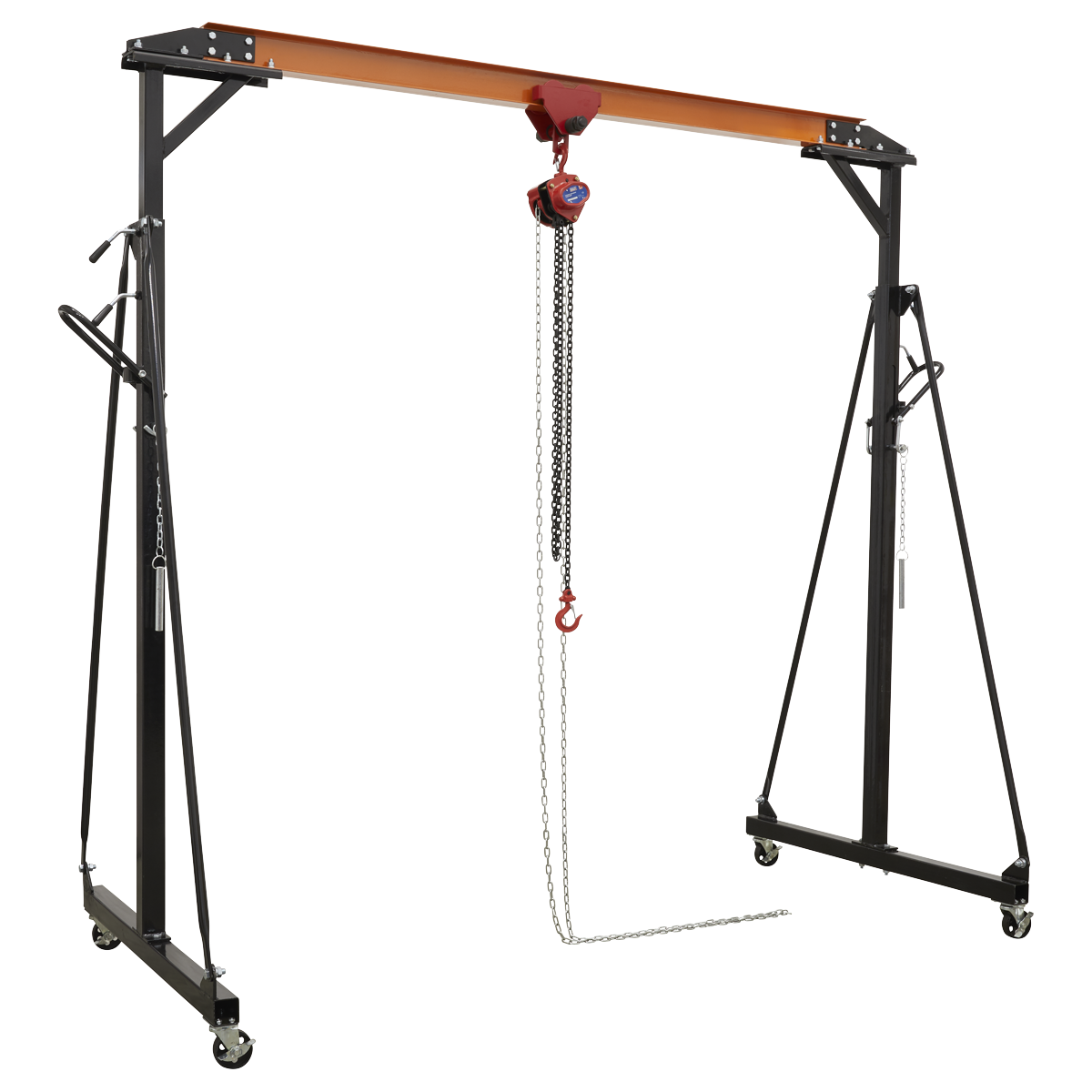

Complete 500kg Gantry and lifting accessory set. Gantry is free standing, height adjustable and portable. Plain trolley with 500kg rated capacity for mounting the Chain Block to the Gantry. 500kg capacity Chain Block for making the lifting of the load easy. Suitable for lifting a load safely and securely with minimum effort.
Specifications
- Model No SG500KIT
- This Kit Contains the following: 1x: SG500 / 1x: PT500 / 1x: CB500 (Details Below)
- Brand: Sealey
- Gantry Width: 2600mm
- Maximum Depth: 1200mm
- Maximum Height: 3600mm
- Maximum Load Capacity: 0.5Tonne
- Minimum Height: 2400mm
- Nett Weight: 100kg
- Nett Weight: 7kg
- Capacity: 500kg
- Test Load: 750kg
- Track Width Adjustable Range: 64-140mm
- Minimum Curve Radius: 800mm
- A: 212mm
- B: 115mm
- C: 115mm
- D: 90mm
- E: 115mm
- Weight: 7kg
- Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
- Maximum Distance Between Spans: 3000mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
- Maximum Distance Between Spans: 8000mm
- Capacity: 500kg
- Head Room: 295mm
- Hook Aperture: 25mm
- Load Chain Diameter: Ø6mm
- Maximum Hook Capacity Ø: 35mm
- Nett Weight: 10kg
- Pulling Effort: 23.5kgf
- Safe Working Load: 500kg
- Size (W x D): 127 x 131mm
- Standard Lift: 2.5m
- Test Load: 750kg
Complete 500kg Gantry and lifting accessory set. Gantry is free standing, height adjustable and portable. Plain trolley with 500kg rated capacity for mounting the Chain Block to the Gantry. 500kg capacity Chain Block for making the lifting of the load easy. Suitable for lifting a load safely and securely with minimum effort.
Specifications
- Model No SG500KIT
- This Kit Contains the following: 1x: SG500 / 1x: PT500 / 1x: CB500 (Details Below)
- Brand: Sealey
- Gantry Width: 2600mm
- Maximum Depth: 1200mm
- Maximum Height: 3600mm
- Maximum Load Capacity: 0.5Tonne
- Minimum Height: 2400mm
- Nett Weight: 100kg
- Nett Weight: 7kg
- Capacity: 500kg
- Test Load: 750kg
- Track Width Adjustable Range: 64-140mm
- Minimum Curve Radius: 800mm
- A: 212mm
- B: 115mm
- C: 115mm
- D: 90mm
- E: 115mm
- Weight: 7kg
- Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
- Maximum Distance Between Spans: 3000mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
- Maximum Distance Between Spans: 8000mm
- Capacity: 500kg
- Head Room: 295mm
- Hook Aperture: 25mm
- Load Chain Diameter: Ø6mm
- Maximum Hook Capacity Ø: 35mm
- Nett Weight: 10kg
- Pulling Effort: 23.5kgf
- Safe Working Load: 500kg
- Size (W x D): 127 x 131mm
- Standard Lift: 2.5m
- Test Load: 750kg
