- Radial Pillar Drill Bench 5-Speed 820mm Height 550W/230V GDM790BR

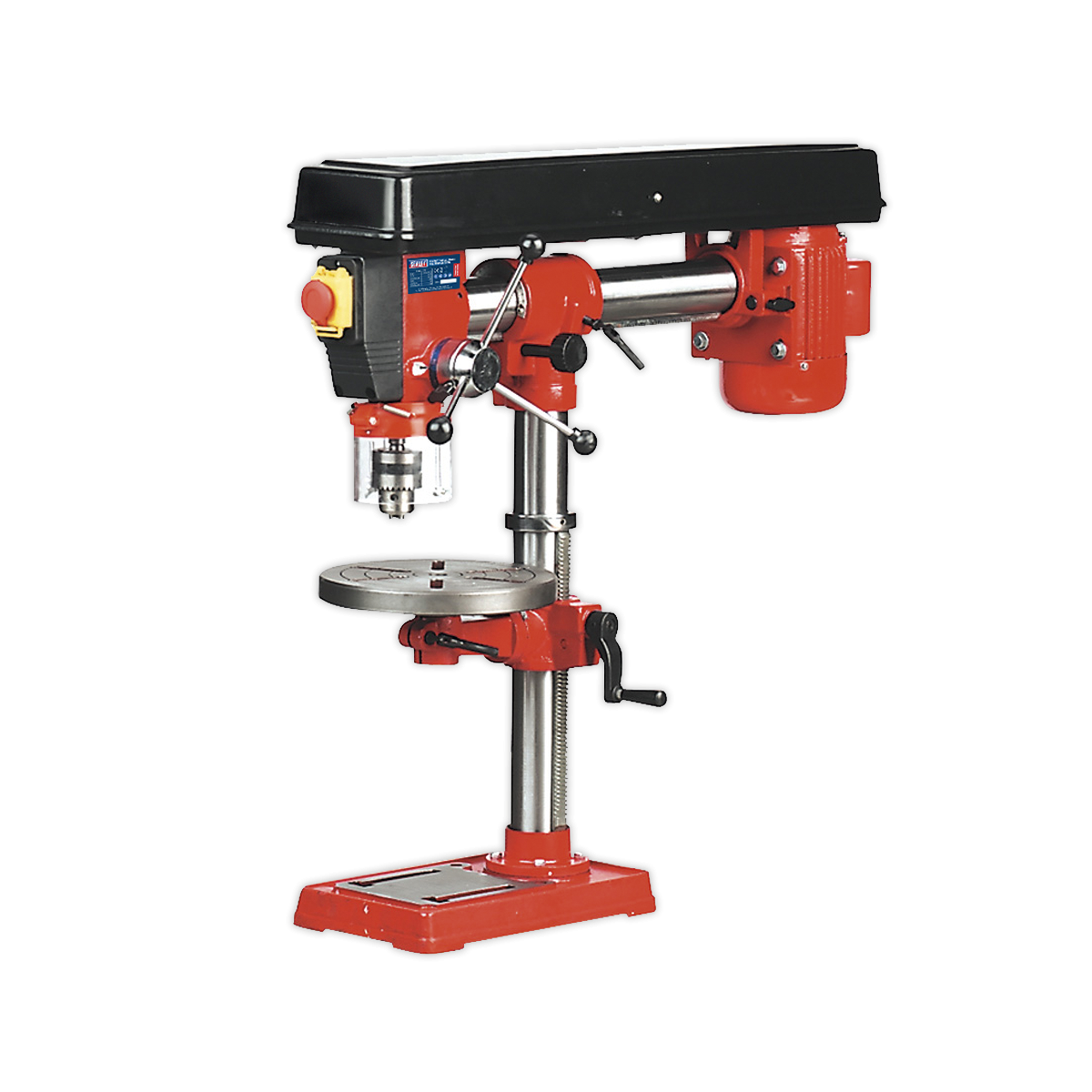

Sealey ToolsRadial Pillar Drill Bench 5-Speed 820mm Height 550W/230V GDM790BR
RRP £587.94£412.02(£343.35 ex. VAT)Save: £175.92
In Stock
Product Description
Product Reviews
Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
Specifications
- Model No GDM790BR
- Base Size: 345 x 215mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): 16mm
- Maximum Distance Spindle to Base: 470mm
- Maximum Distance Spindle to Table: 300mm
- Motor Power: 550W
- Nett Weight: 43kg
- Number of Speeds: 5
- Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 820mm
- Radial Arm Travel: 285mm
- Speed Range: 500-2450rpm
- Spindle Centre to Column: 420mm
- Spindle Nose Taper: MT2
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 840mm
- Working Base Surface Size: 160 x 180mm
- Working Table Surface Size: Ø310mm
Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
Specifications
- Model No GDM790BR
- Base Size: 345 x 215mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): 16mm
- Maximum Distance Spindle to Base: 470mm
- Maximum Distance Spindle to Table: 300mm
- Motor Power: 550W
- Nett Weight: 43kg
- Number of Speeds: 5
- Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 820mm
- Radial Arm Travel: 285mm
- Speed Range: 500-2450rpm
- Spindle Centre to Column: 420mm
- Spindle Nose Taper: MT2
- Spindle Travel: 80mm
- Supply: 230V
- Swing: 840mm
- Working Base Surface Size: 160 x 180mm
- Working Table Surface Size: Ø310mm
