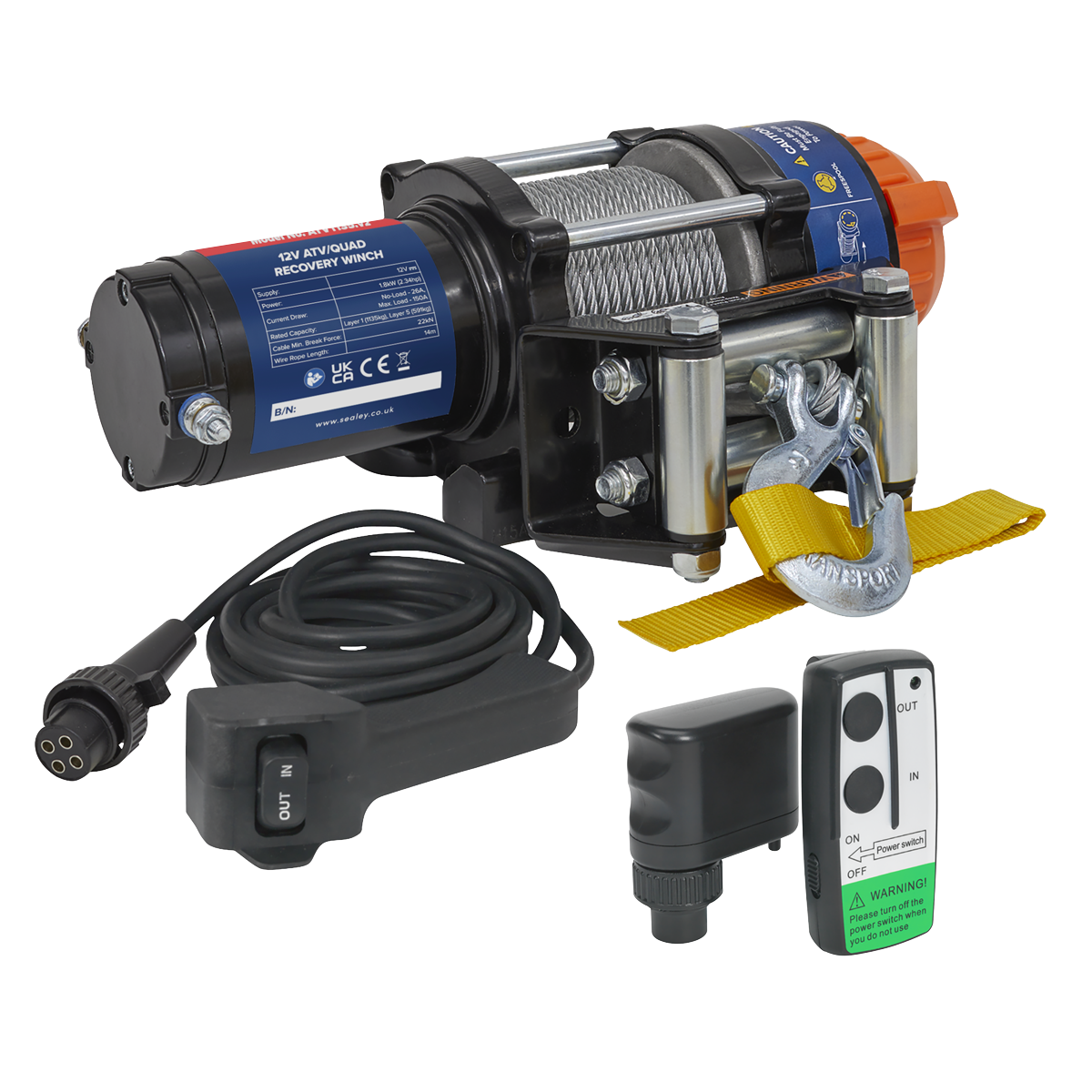

- Wireless Winch ATV1135 Combo ATV1135KIT
Sealey ToolsWireless Winch ATV1135 Combo ATV1135KIT
RRP £341.94£274.67(£228.89 ex. VAT)Save: £67.27
In Stock
Product Description
Product Reviews
Suitable for ATV and quadbike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Specifications
- Model No ATV1135KIT
- Brand: Sealey
- Cable Minimum Brake Force: 22kN
- Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
- Current Draw: No-Load - 26A, Maximum Load - 150A
- Gear Ratio: 180:1
- Line Pull*: 1135kg(2500lb)
- Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
- Motor Power: 1.8kW(2.34hp)
- Nett Weight: 11.9kg
- Note: *Performance quoted at first layer of cable on drum
- Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
- Supply: 12V
Suitable for ATV and quadbike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Specifications
- Model No ATV1135KIT
- Brand: Sealey
- Cable Minimum Brake Force: 22kN
- Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
- Current Draw: No-Load - 26A, Maximum Load - 150A
- Gear Ratio: 180:1
- Line Pull*: 1135kg(2500lb)
- Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
- Motor Power: 1.8kW(2.34hp)
- Nett Weight: 11.9kg
- Note: *Performance quoted at first layer of cable on drum
- Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
- Supply: 12V
