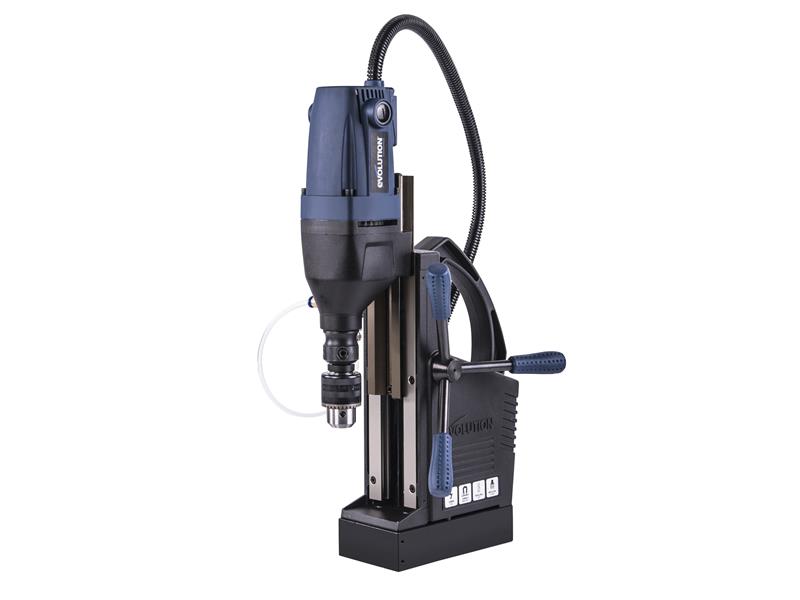

Evolution EVOMAG28 Magnetic Drill

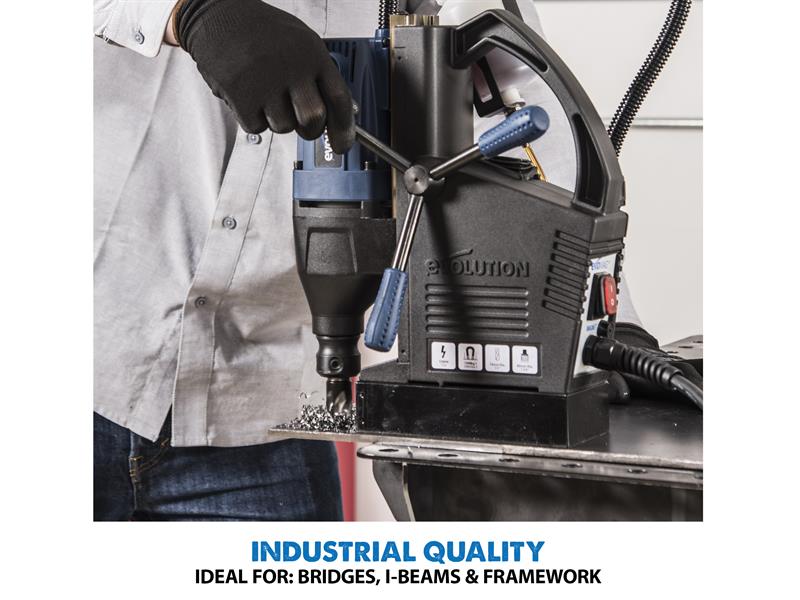

The Evolution EVOMAG28 Magnetic Drill is ideal for bridges, I-beams and framework. Deceptive in its capabilities, although small in size it is highly productive in heavy-duty industrial and fabrication work. Easy to carry and position in both awkward and confined spaces, due to its compact dimensions.

Versatile, accurate and fast, the EVOMAG28 combines strong electro-magnetic adhesion at 1300kg. The spoke handles can also be mounted on the right or left side of the machine for better ease of use. The cuts are precise and clean due to an optimised rotation speed of 570rpm. It offers incredible value and an impressive 13mm twist drill capacity with the added capability to use up to a 28mm cutter.

Supplied with: 1 x Coolant System, 1 x Safety Guard & Hardware, 1 x Safety Strap, 3 x Feed Handles, 4 x Hex Keys (2.5, 4, 5, 6mm), 1 x Chuck with Chuck Key, 1 x Instruction Manual and 1 x Carry Case.

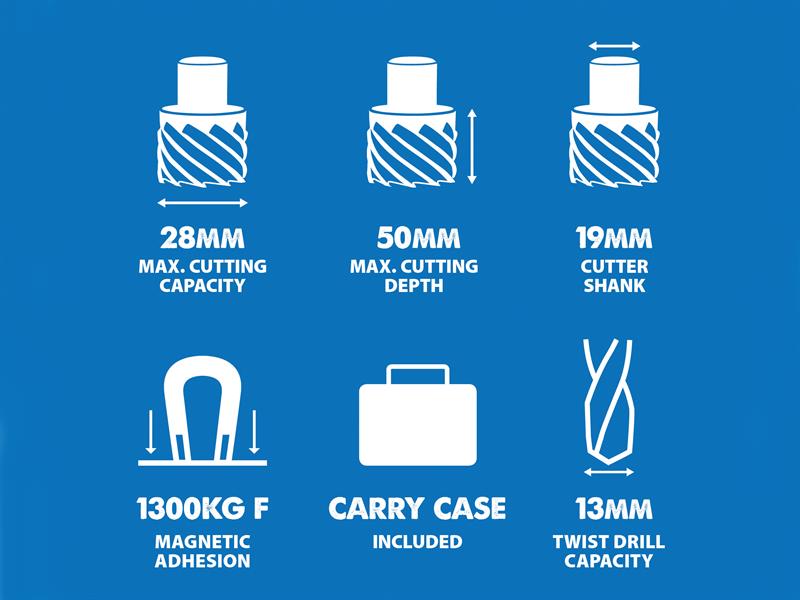

Specification:

Input Power: 1,200W
No Load Speed: 480/min.
Magnet Adhesion: 1300kg

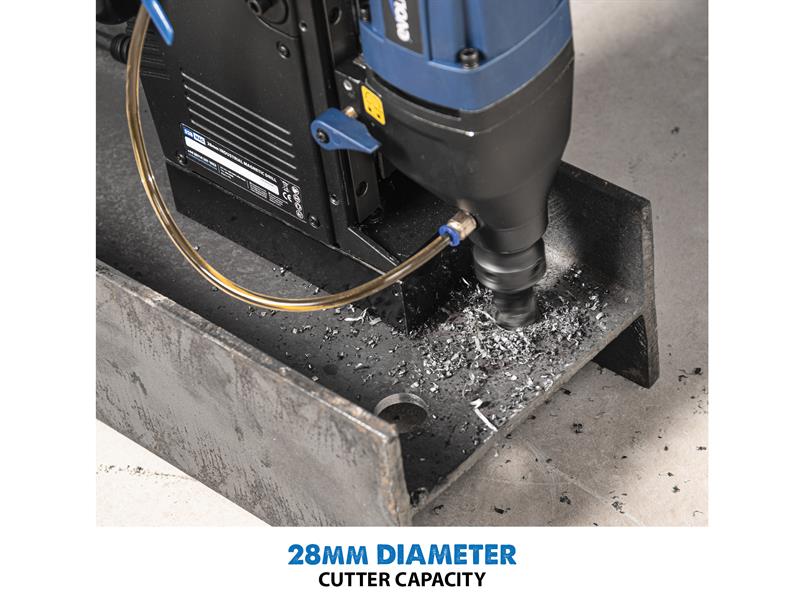

Max. Annular Cutting Capacity: 28mm

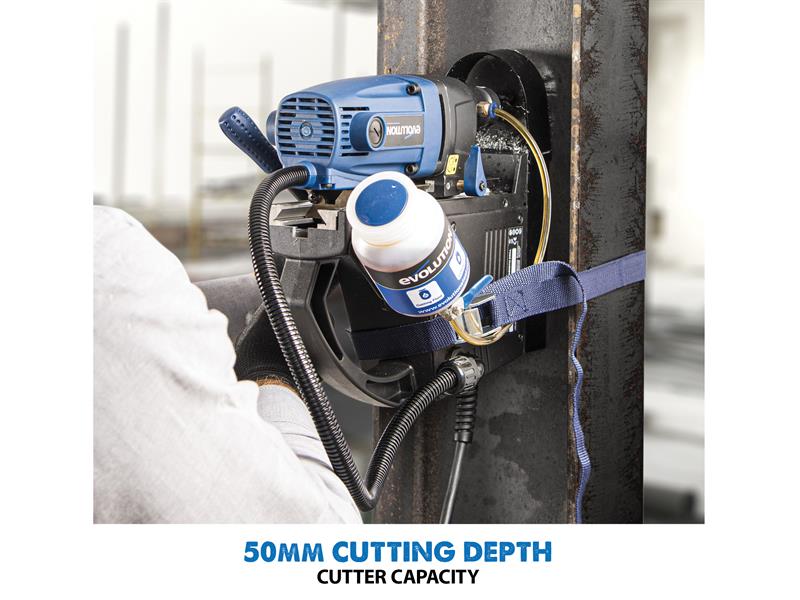

Max. Cutting Depth: 50mm
Cutter Shank: 19mm

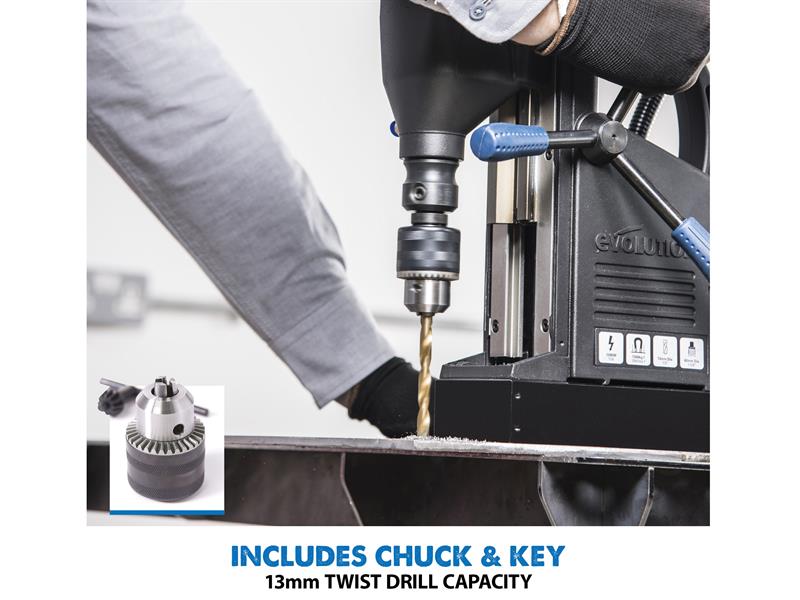

Standard Twist Drill Capacity: 13mm
Magnet Dimensions (HxWxL): 50 x 80 x 164mm
Max. Machine Height: 585mm, Min. Machine Height: 450mm
Power Cord Length: 2.5m
Sound Pressure Level LPA: 91 dB(A)
Weight: 14kg
