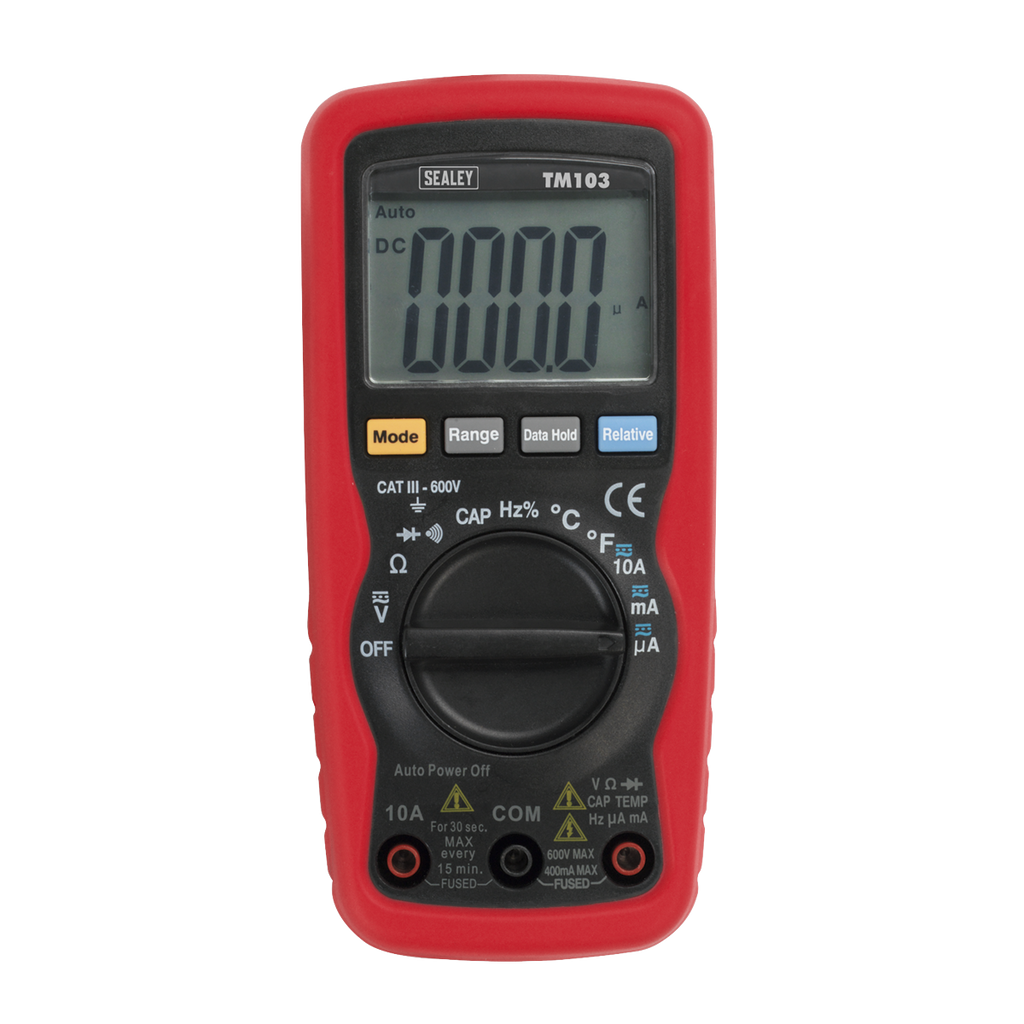

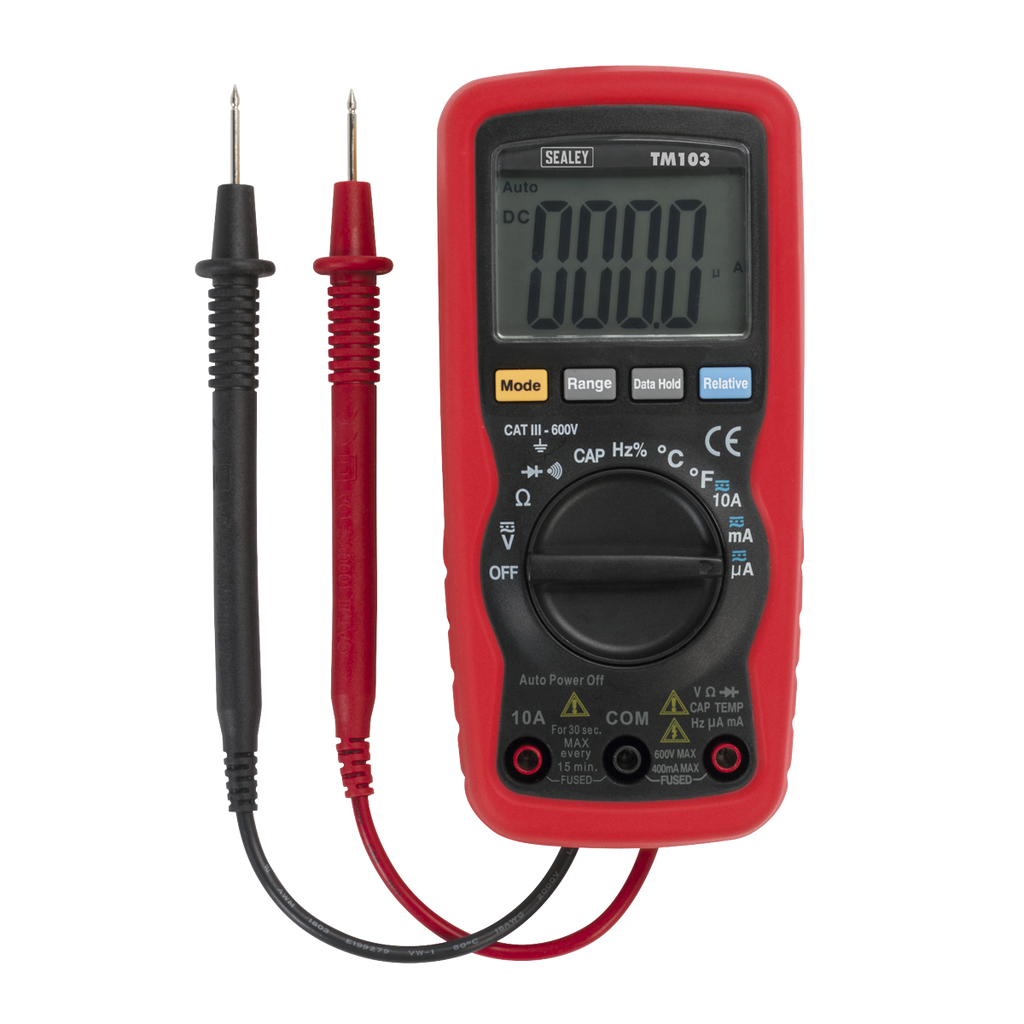

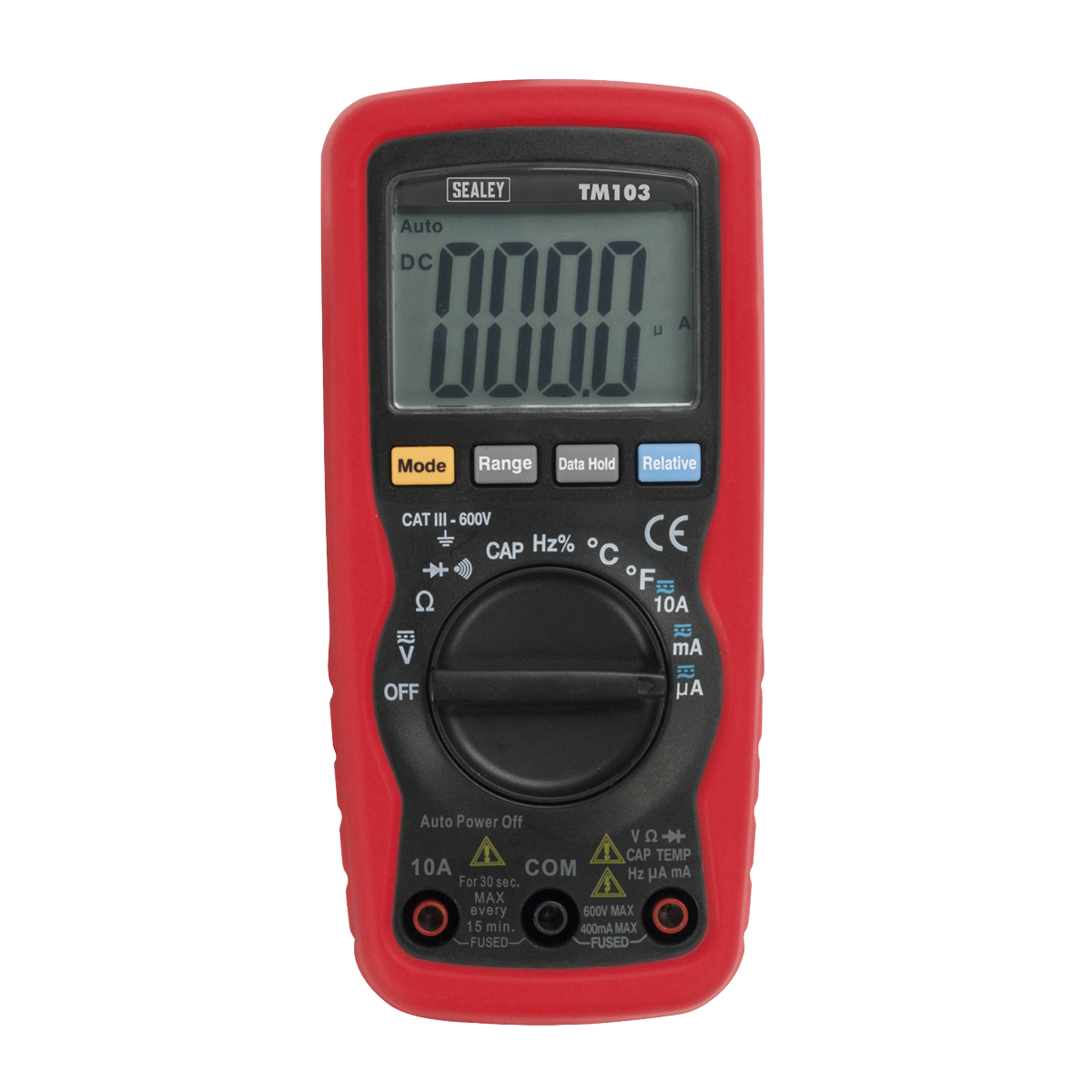

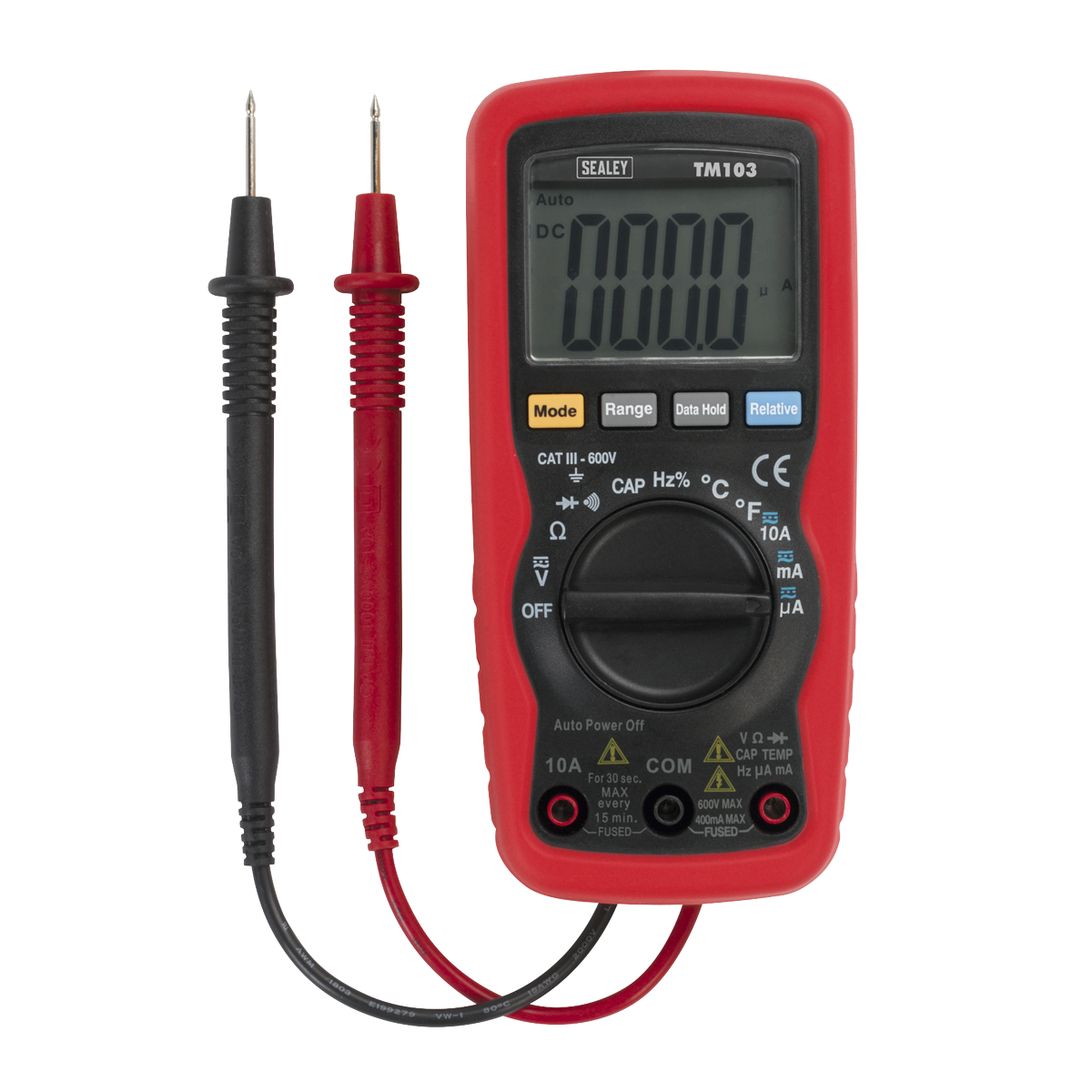

Sealey Tools 11-Function Professional Auto-Ranging Digital Multimeter TM103

Name: 11-Function Professional Auto-Ranging Digital Multimeter TM103
Brand: Sealey Tools
SKU: TM103
Price: 79.53 GBP
Availability: InStock

£79.53 RRP:£118.68
(Ex VAT: £66.28)

In stock - Ready to ship

1-3 days tracked delivery

Free delivery over £50 (exc >30kg items)

30-day returns policy

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max./data-hold, and auto-power-off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe and lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap.

Measures:
• Frequency
• Duty Cycle
• AC and DC Voltage
• AC and DC Current
• Resistance
• Diode Test
• Audible Continuity
• Temperature
• Capacitance

Model No TM103
Brand: Sealey
Nett Weight: 255g
AC Voltage (Accuracy): 400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
DC Voltage (Accuracy): 0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
AC Current (Accuracy): 400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
DC Current (Accuracy): 400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy): 0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
Capacitance (Accuracy): 4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 100µF (±5%)
Temperature (Accuracy): -20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
Frequency (Accuracy): 9.999Hz to 9.999MHz
Duty Cycle: 0.1%-99.9% (±1.2%)
Continuity Audible: Yes
Diode Test: Yes
Transistor Test: No
Hi-Impact Rubber Case: Yes
Digits x Height: 2.1 x 24.5mm
Low Battery Indicator: Yes
Battery (Supplied): 1 x 9V
Information: Data-Hold & Auto-Power-Off
Size (L x W x D): 150 x 70 x 48mm
Weight: 255g
Conformity: EN 61010-1
