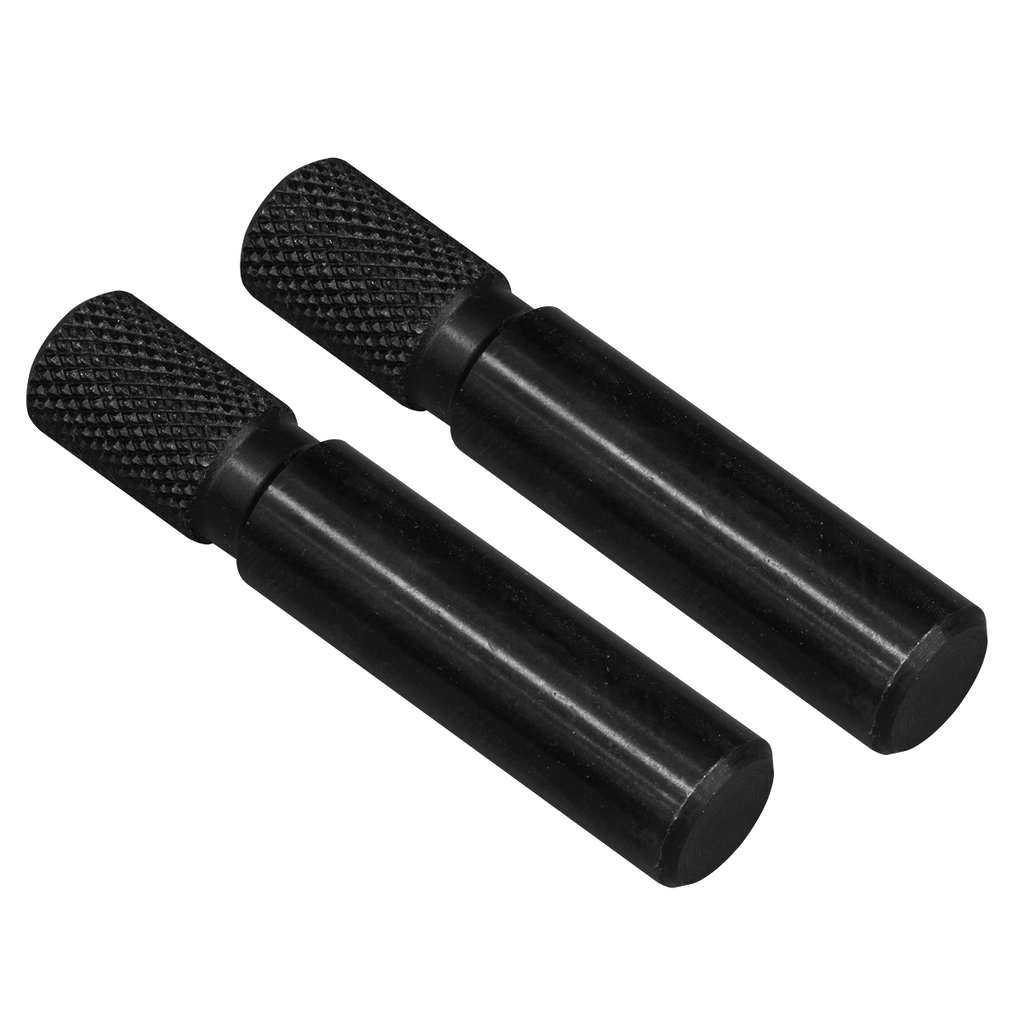

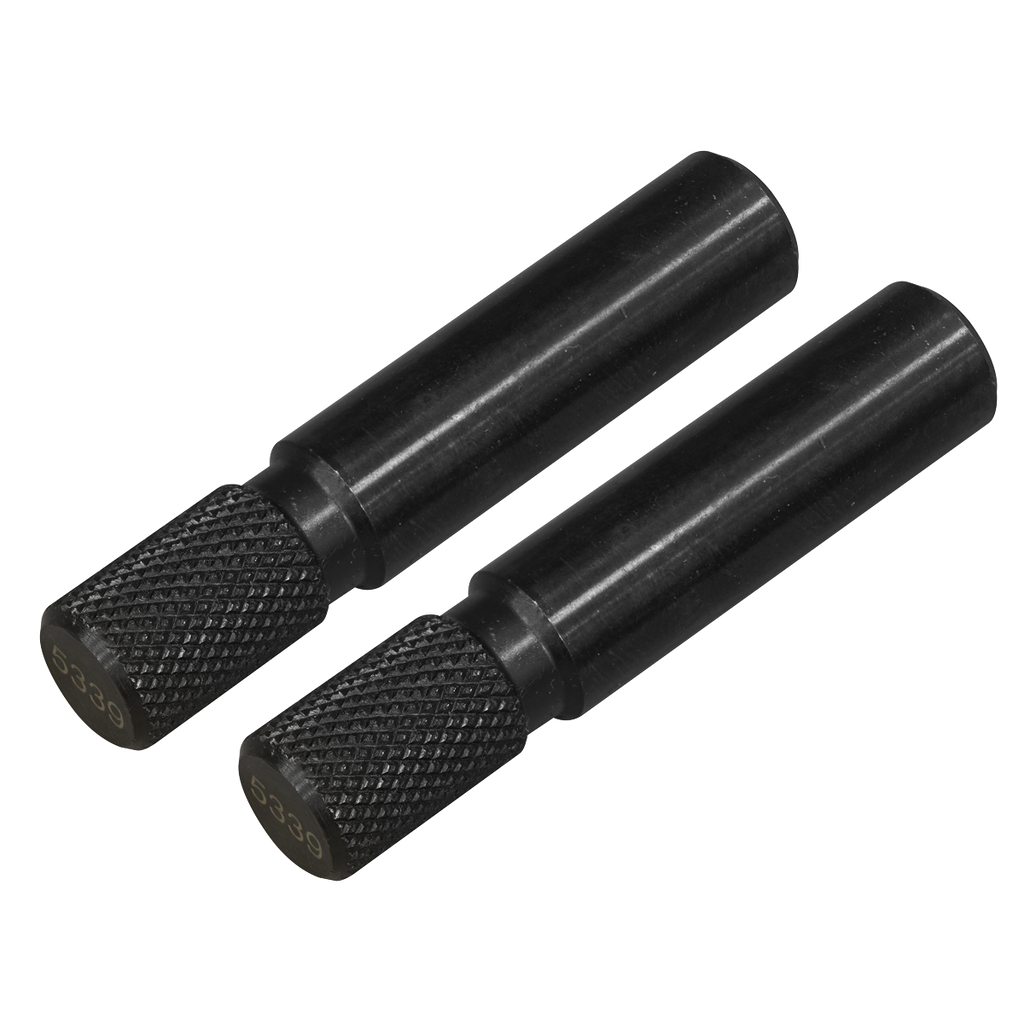

Sealey Tools Camshaft Carrier Alignment Pin Set For PSA 1.4/1.5D/1.6D Belt Drive VS5339

Name: Camshaft Carrier Alignment Pin Set For PSA 1.4/1.5D/1.6D Belt Drive VS5339
Brand: Sealey Tools
SKU: VS5339
Price: 35.06 GBP
Availability: InStock

£35.06 RRP:£45.54
(Ex VAT: £29.22)

10 left

1-3 days tracked delivery

Free delivery over £50 (exc >30kg items)

30-day returns policy

Suitable for use with 1.4 (DV4), 1.5 (DV5) and 1.6 (DV6) HDi diesel engines. Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures. Makes assembly a simpler and more accurate process.

Model No VS5339
Applications:
Citroen: C1 (05-10), C2 (02-10), C3 (02-10), C3 1 (02-10), C3 II (02-10), C3 III (04-18), C3 Pluriel (2012), C3 Classic (02-10), C3 Aircross (18-21), C3 Picasso (04-17), C4 (07-11), C4 II (11-18), C4 III (00-04), C4X (02-26), C4 Picasso (00-18), C4 Grand Picasso (06-18), C4 Cactus (18-21), C4 Aircross (07-10), C4 Sports Tourer (18-24), C4 Grand Sports Tourer (18-25), C5 Aircross (19-25)C5 II (04-08), C5 III (04-15), C-Elysee (14-21)
Fiat: Scudo (07-16)
Ford: B-Max (12-15), C-Max (11-20), Grand C-Max (10-19), Ecoboost (13-23), Fiesta (02-13), Fusion (02-11), Focus (04-25), Galaxy (11-15), Kuga (20-23), Puma (20-23), S-Max (10-15), Tourneo Connect (13-24), Grand Tourneo Connect (15-24), Transit Connect (13-24), Transit Courier (20-26)
Mazda: 2 (02-10), 3 (03-14)
Peugeot: 107 (05-10), 1007 (05-10), 206 (01-09), 206 + (10-13), 206 CC (05-07), 207 (06-13), 207CC (07-15), 208 (13-23), 2008 (13-20), 308 (01-26), 308 CC (06-15), 308 SW (21-26), 3008 (09-18), 407 (05-15), 4008 (99-02), 508 (09-24), 5008 (02-15), Bipper (08-10), Rifter (18-24), Partner (05-11), Partner II (05-11), Partner III (02-17), Partner IV (18-24), Expert III (07-12)
Mini: Mini (06-15), Clubman (07-14)
Suzuki: Liana (04-08), SX4 (07-11)
Vauxhall: Combo E (18-21), Crossland (17-21), Grandland (17-21)
Associated tools: VSE5846, VSE5930, VSE5941
Brand: Sealey
Engine Codes:
1.4D: 8HT (DV4TD), 8HW (DV4TD), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TED4), 8HZ (DV4TD), 8HY (DV4TED4)
1.4D DDiS: DV4(8HY)
1.4D HDi: DV4C(8HP), DV4C(8HR), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW), DV4TD(8HZ), DV4TED4(8HX), DV4TD(8HZ), DVTED4(8HV), DV4TED4(8HY), DV4TED(8HS), DV4TD(8HT)
1.4D TDCi: F6JA, F6JB, F6JD
1.5D HDi: YHX(DV5RCD), YHY(DV5RD), YHT(DV5RCF), YHY(DV5RD), YHS(DV5RCE), YHX(DV5RCD), YHZ(DV5RC), YHW(DV5RE), YHT(DV5RCF), YHZ(DV5RC), YHR(DV5RUCD), YHV(DV5RUC), DV5RC(YHZ)
1.5D TDCi: UGJE, XXDD, XWDD, XWDE, XWDG, XVGA, XUGA, XWGA
1.5D ecoBlue: ZTDA, ZTJA, ZTJB, ZTJC, ZTJD, ZTJE, Z2GA
1.5D: LQJ/D15T, LQJ/D15H
1.6D Blue-HDi: DV6C(BHX), DV6C(BHZ)
1.6D DDiS: DV6(9HX)
1.6D e-HDi: DV6FE(BHW), DV6FE(BHY), DV6FE(BXZ), DV6FD(BHY), DV6C(9HR), DV6C(9HD), DV6TED(9HD), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ)
1.6D HDi Airdream: DV6C(9HL), DV6C(9HR), DV6C(9HD)
1.6D HDi : DV6UTED4(9HX), DV6TED4(9HZ), DV6FD(BHY), DV6UTED4(9HU), DV6C(9HL), DV6C(9HR), DV6TED4(9HY), DV6C(9HD), DV6(9HR), DV6BTED4(9HW), DV6ATED4(9HX), DV6DTED(9HJ), DV6ETED(9HN), DV6DTED(9HP), DV6TED4BU(9HS), DV6FE(BHW), DV6BUTED4(9HT), DV6TED4B(9HV), DV6BTED4(9HT), DV6D(9HP), DV6TED4(9HV), DV6ETEDM(9HK), DV6C(9HC), DV6CM(9HG), DV6C(9HG), DV6C (9HD), DV6TED4(9HW), DV6TED4(9HX), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC), DV6DTED(9HC), DV6DTED(9HJ), DV6DTED(9HH), DV6TEDB4(9HV), DV6TEDB4(9HS), DV6ETED(9HK), DV6AUTED4(9HX), DV6TED4B, DV6DTED(9HF)
1.6D TDCi: T3JB, T1WA, T1WB, G8DF, T1DA, T1DB, T3DB, UBGA, T1GA
1.6 JTD: 9H07
Nett Weight: 0.105kg
OEM Tool(s):
PSA: 0194-N
Ford: 303-245
Fiat: 2.000.022.900
Mazda: 303-034
Vauxhall: EN-52146
